Progressive die stamping, also known as progressive mold, is a type of mold composed of multiple workstations. Each workstation is sequentially associated to complete different processing tasks, and in one stroke of the punching machine, it can complete a series of different stamping processes. This mold structure allows the punch feeder to move the material forward according to a fixed step distance after a single stroke is completed, thereby completing multiple processes on a single mold, which may include punching, dropping, bending, trimming, deep drawing, and so on.
Progressive die stamping molds are widely used in multiple industries, especially in the automotive and hardware products industries. In the automotive industry, progressive die stamping molds are used to manufacture exterior components such as doors, locks, steering gear, seats, as well as important components such as engines, chassis, and body, ensuring quality and efficiency. In the hardware products industry, the application of progressive die stamping molds covers kitchen and bathroom hardware, bathroom hardware, and workshop supplies, suitable for manufacturing with complex structures and high-precision requirements.
In addition, progressive molds have their unique applications in mold design and development. The use of progressive die stamping molds can divide the entire process into multiple stages to improve controllability and quality. From the perspective of mold manufacturing, the design of progressive die stamping molds also takes into account engineering changes during the manufacturing process and the convenience of mold maintenance in subsequent stamping production. For example, the lower (concave) die, small bending convex die, and unloading part often adopt a block structure.
Progressive die stamping die is an efficient type of stamping die. Its main characteristics include:
Multi station continuous processing: Setting up multiple stations in a mold, through the continuous movement of the mold, the material completes various processes such as punching, bending, and stretching in different stations, achieving one-time processing of complex parts.
Efficient production: It can greatly improve production efficiency, reduce production cycles, and is suitable for large-scale production.
High precision: By precise mold design and manufacturing, the machining accuracy of each workstation is ensured, thereby obtaining high-precision stamped parts.
High material utilization rate: Reasonable layout design can minimize waste and improve material utilization rate to the greatest extent.
The structure of Progressive die stamping molds is relatively complex, usually including the following parts:
Upper and lower mold seats: provide the installation foundation and support for the mold.
Guide pillar and guide sleeve: Ensure precise guidance of the upper and lower molds, ensuring stamping accuracy.
Station punch and die: Each station has a corresponding punch and die, used to complete specific processes.
Unloading device: including unloading plate, top bar, etc., used to unload stamped parts or waste from the mold.
In the manufacturing of automotive components, Progressive die stamping molds can quickly produce a large number of precision parts, such as body structural parts; In the electronics industry, it can be used to manufacture complex small parts such as connectors.
As manufacturers deeply immersed in the world of metal forming, we often find ourselves relying on progressive die stamping molds to meet the ever – growing demands for high – quality, cost – effective production. So, what exactly are progressive die stamping molds? Let’s explore this essential tool from our collective perspective.
Progressive die stamping molds are sophisticated assemblies that have revolutionized our manufacturing processes. At their core, these molds are designed to transform flat sheets of metal, typically in coil form, into finished components through a series of sequential operations. Unlike traditional single – operation stamping dies, progressive die stamping molds enable multiple processes, such as blanking, piercing, bending, and forming, to occur in a single continuous pass through the press. This seamless integration of operations is what sets them apart and makes them a game – changer in our industry.

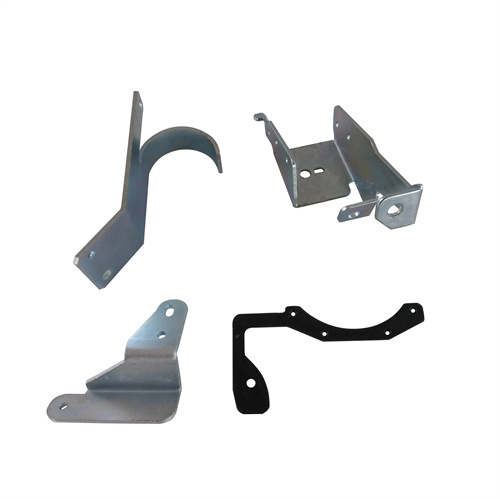

Imagine we’re tasked with producing a complex automotive bracket. With a progressive die stamping mold, the process begins as the metal coil is fed into the mold. In the first stage, the die cuts the rough shape of the bracket through a blanking operation. As the coil advances, subsequent stages of the mold perform piercing operations to create holes for bolts or other fasteners. Then, in a series of bending and forming stages, the metal is precisely shaped into the final bracket configuration. All these steps happen in a fluid, automated sequence, eliminating the need for us to manually transfer the workpiece between different dies, which was common with traditional methods.
The design of progressive die stamping molds is a meticulous engineering feat. We use advanced computer – aided design (CAD) software to map out every detail, from the precise dimensions of each operation to the optimal layout of the stages within the mold. Each stage is carefully engineered to work in harmony with the others, ensuring that the material is processed accurately and efficiently. The materials used in constructing these molds are also carefully selected. High – grade tool steels, known for their durability and wear – resistance, are commonly employed. This ensures that the molds can withstand the high pressures and repeated impacts of the stamping process, allowing us to produce thousands, if not millions, of parts without significant degradation in quality.
One of the most significant advantages of progressive die stamping molds, from our experience, is their ability to enhance production efficiency. In high – volume manufacturing, where time is of the essence, these molds can churn out parts at an astonishing rate. The continuous nature of the process means minimal downtime between parts, and the automation reduces the margin for human error. We’ve seen firsthand how the use of progressive die stamping molds has allowed us to increase our production output by up to 80% in some projects, enabling us to meet tight deadlines and fulfill large – scale orders with ease.
Moreover, progressive die stamping molds offer unparalleled precision. The controlled environment within the mold, combined with the sequential nature of the operations, ensures that each part produced adheres to strict dimensional tolerances. This level of accuracy is crucial, especially in industries like electronics and aerospace, where even the slightest deviation can render a component useless. We take pride in our ability to produce parts with consistent quality, thanks to the reliability of progressive die stamping molds.
However, we also recognize that working with progressive die stamping molds comes with its challenges. The initial design and fabrication of these molds require a significant investment in terms of time, resources, and expertise. But when we consider the long – term benefits in terms of production efficiency, cost savings, and product quality, we know that the investment is well worth it.
In conclusion, progressive die stamping molds are an indispensable part of our manufacturing toolkit. They are a testament to the power of engineering and innovation, enabling us to produce high – quality components at scale and stay competitive in an ever – evolving market.
