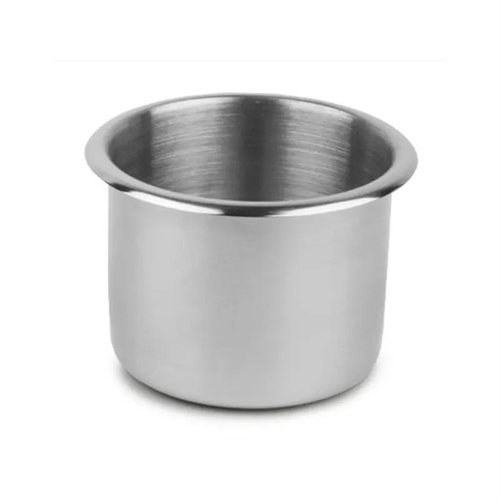

Wrinkling in Deep Drawing: Causes and Solutions
Wrinkling is one of the most prevalent defects we encounter in deep drawing. This occurs when the sheet metal buckles or folds during the forming process, usually due to insufficient blank holder pressure. When the blank holder fails to firmly grip the edges of the metal sheet, the material is free to move and bunch up, creating unsightly and potentially damaging wrinkles. Another contributing factor can be an improper ratio between the blank diameter and the die opening; if the blank is too large relative to the die, excess material can accumulate and wrinkle. To prevent wrinkling, we first ensure that the blank holder pressure is precisely calibrated according to the material’s thickness and properties. Installing draw beads on the die surface is also an effective strategy. These beads create additional resistance to the metal flow, distributing the material more evenly and reducing the likelihood of wrinkling. Regular maintenance of the blank holder and die components to ensure they are free from wear and damage is equally crucial.
Cracking in Deep Drawing: Understanding and Avoiding the Issue
Cracking in deep drawing is a serious defect that can render parts unusable. It typically happens when the metal undergoes excessive stretching beyond its ductility limits. Materials with low ductility or high work – hardening rates are more prone to cracking. For example, stainless steel, which has a high work – hardening rate, may crack if not properly processed during deep drawing. Inadequate lubrication can also contribute to cracking, as increased friction between the metal and the tool surfaces can cause localized stress concentrations. To avoid cracking, we carefully select materials with appropriate formability for the intended deep drawing operation. When working with materials that are prone to cracking, we implement multi – stage drawing processes with intermediate annealing. This helps to relieve internal stresses and restore the material’s ductility. Additionally, using high – quality lubricants and ensuring proper application on both the metal sheet and tool surfaces significantly reduces friction and the risk of cracking.
Surface Defects in Deep Drawing: Scratches and Galling
Surface defects such as scratches and galling can severely impact the quality and appearance of deep – drawn parts. Scratches are often caused by rough or damaged tool surfaces, as well as foreign particles getting trapped between the metal and the die or punch. Galling, on the other hand, is the adhesion and transfer of metal from the sheet to the tool surface, resulting in a rough, pitted surface. This is more likely to occur when there is insufficient lubrication or when the contact pressure between the metal and the tool is too high. To prevent surface defects, we regularly inspect and maintain our dies and punches, ensuring that their surfaces are smooth and free from any damage or debris. Using high – performance lubricants that provide excellent anti – galling properties is essential. We also implement strict cleanliness protocols in our production environment, minimizing the presence of contaminants that could cause scratches. When necessary, we apply surface coatings to the tools to enhance their hardness and reduce the likelihood of galling.
Earing in Deep Drawing: Reasons and Preventive Measures
Earing is a defect characterized by the formation of uneven, ear – like protrusions around the rim of a deep – drawn cup or cylindrical part. It is primarily caused by the anisotropy of the sheet metal, which means that the material properties vary in different directions. As the metal is drawn, the grains in the material deform preferentially in certain directions, leading to the formation of ears. The degree of earing can also be influenced by factors such as the drawing ratio, blank holder pressure, and tool geometry. To prevent earing, we start by selecting materials with low anisotropy values when possible. Optimizing the drawing ratio and blank holder pressure can also help to reduce earing. Additionally, modifying the tool geometry, such as using rounded corners on the die and punch, can improve the metal flow and minimize the formation of ears. In some cases, post – processing operations like trimming can be used to remove the eared portions, but preventive measures are always preferred to minimize waste and improve efficiency.
Springback in Deep Drawing: Analyzing and Controlling the Problem
Springback occurs when the deep – drawn part springs back to a slightly different shape after the forming force is removed. This is due to the elastic recovery of the metal, which returns to its original shape to some extent after the plastic deformation during deep drawing. The amount of springback depends on factors such as the material’s elastic modulus, yield strength, and the degree of plastic deformation. Complex part geometries with sharp corners or bends are particularly prone to significant springback. To control springback, we use advanced simulation software during the design phase to predict the amount of springback and make necessary adjustments to the tool design. This may involve over – bending the part during the deep drawing process to account for the expected springback. We also carefully select materials with appropriate mechanical properties to minimize springback. In some cases, post – forming operations such as coining or sizing can be used to correct the shape and reduce the effects of springback, ensuring that the final part meets the required specifications.
Wall Thinning in Deep Drawing: Detection and Prevention
Wall thinning is a defect where the thickness of the deep – drawn part’s walls decreases significantly, potentially weakening the structural integrity of the component. It mainly occurs due to excessive stretching of the metal during the deep drawing process. High drawing ratios, improper punch – die clearances, and insufficient lubrication can all contribute to wall thinning. For example, if the clearance between the punch and the die is too large, the metal may not be supported adequately, leading to excessive thinning. To detect wall thinning, we use non – destructive testing methods such as ultrasonic thickness measurement during and after the deep drawing process. To prevent this defect, we optimize the drawing ratio based on the material’s formability and the part’s design requirements. Ensuring the correct punch – die clearance is essential, as it helps to control the metal flow and prevent excessive thinning. Using proper lubrication and maintaining a consistent drawing speed also play important roles in preventing wall thinning, allowing us to produce deep – drawn parts with uniform wall thicknesses and reliable structural performance.
