The Basics of Deep Drawing: A Fundamental Introduction

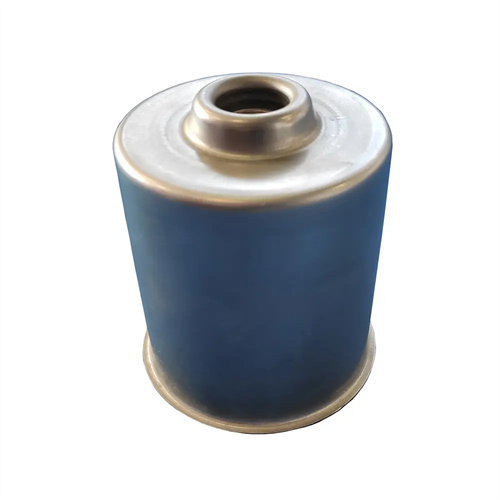

Deep drawing is a fascinating metal forming process that we frequently rely on to transform flat sheets of metal into intricate three-dimensional shapes. At its core, the process involves using a punch to force a sheet metal blank into a die cavity. As the punch descends, the metal is stretched and shaped, gradually taking on the form of the die. This technique is based on the principle of plastic deformation, where the metal is deformed beyond its elastic limit but without fracturing. For example, when creating a simple cylindrical cup from a flat metal disk, the deep drawing process allows us to smoothly form the walls and base of the cup in a single operation. Understanding these basic mechanics is crucial, as it forms the foundation for more complex deep drawing applications across various industries, from automotive and aerospace to consumer goods manufacturing.
Key Components and Equipment in Deep Drawing
The success of the deep drawing process hinges on several key components and specialized equipment. The die and punch are the most critical tools. The die is a hollow block with the desired shape of the final product, while the punch, which has a complementary shape, forces the sheet metal into the die. Both the die and punch are typically made from high-strength materials like tool steel or carbide to withstand the high pressures involved. A blank holder is another essential component. It applies pressure to the edges of the sheet metal blank, preventing it from wrinkling or folding during the drawing process. Additionally, we use deep drawing presses, which can be hydraulic, mechanical, or servo-electric, to provide the necessary force to drive the punch into the die. These presses are equipped with precise control systems that allow us to regulate the force, speed, and stroke of the punch, ensuring consistent and accurate results in each deep drawing operation.
Material Considerations for Deep Drawing
Selecting the right material is a crucial step in the deep drawing process. Different metals have varying properties that affect their formability and the final quality of the drawn product. Materials with good ductility, such as mild steel, aluminum, and copper, are commonly used in deep drawing. Mild steel, for instance, offers a good balance of strength and formability, making it suitable for a wide range of applications. Aluminum is prized for its lightweight nature and corrosion resistance, often used in industries where weight reduction is essential, like automotive and aerospace. However, each material also presents its own challenges. For example, stainless steel has a higher work-hardening rate, which may require multiple drawing operations with intermediate annealing to achieve the desired shape without cracking. We must carefully evaluate factors like material strength, ductility, and cost, as well as its compatibility with our deep drawing equipment and processes, to ensure a successful outcome.
Process Parameters and Their Impact on Deep Drawing
Controlling the process parameters is vital for achieving the desired results in deep drawing. The force applied by the punch is a critical parameter. Too little force may result in incomplete drawing, while excessive force can cause the metal to tear or thin out excessively. The speed at which the punch moves also plays a role; a too-fast speed can lead to uneven deformation and potential defects. The clearance between the punch and the die is another key factor. An appropriate clearance ensures smooth metal flow and prevents excessive thinning or sticking. Additionally, the lubrication of the sheet metal and the tool surfaces is essential. Lubricants reduce friction, allowing the metal to slide more easily during the drawing process, which helps prevent surface defects and tool wear. By carefully adjusting and monitoring these parameters, we can optimize the deep drawing process and produce high-quality, defect-free components.
Common Challenges and Solutions in Deep Drawing
Despite its many advantages, the deep drawing process is not without its challenges. Wrinkling is a common issue, especially when the blank holder pressure is insufficient or the material is too thin. To address this, we can adjust the blank holder pressure or use a draw bead, which is a raised ridge on the die surface that restricts the flow of the metal and helps prevent wrinkling. Another challenge is cracking, which often occurs due to excessive stretching or high work-hardening rates of the material. This can be mitigated by using materials with better formability, reducing the drawing ratio, or performing intermediate annealing to relieve internal stresses. Surface defects, such as scratches or galling, can also affect the quality of the drawn product. These can be minimized by using proper lubrication, maintaining clean tool surfaces, and choosing materials with good surface characteristics. By being aware of these challenges and having effective solutions in place, we can overcome obstacles and ensure the smooth operation of the deep drawing process.
Applications of Deep Drawing in Various Industries
The versatility of the deep drawing process makes it indispensable across numerous industries. In the automotive industry, we use deep drawing to produce a wide range of components, including engine blocks, transmission cases, and body panels. The ability to create complex, high-strength shapes efficiently helps in improving vehicle performance and safety. In aerospace, deep drawing is employed to manufacture lightweight yet robust parts for aircraft structures, engines, and landing gear. Consumer goods also benefit from this process, with products like kitchen utensils, electronics enclosures, and decorative metal items being produced through deep drawing. Even in the medical field, deep drawing is used to create precise components for medical devices, where accuracy and quality are of utmost importance. As technology continues to advance, the applications of deep drawing are likely to expand further, enabling us to create even more innovative and complex metal products.
