As a team deeply involved in the ever-evolving landscape of electronic product development, we have witnessed firsthand the transformative power of progressive die stamping. This advanced manufacturing technique, which enables the continuous production of intricate components with high precision in a single die setup, has become an indispensable part of our production processes. From enhancing the structural integrity of devices to optimizing their performance, progressive die stamping plays a crucial role in various aspects of electronic product manufacturing. In the following sections, we will explore five key areas where this technology has significantly influenced our approach to creating cutting-edge electronics.
1. Progressive Die Stamping: Constructing Robust and Lightweight Structural Frames
For us, designing electronics that are both durable and lightweight is a constant pursuit, and progressive die stamping offers an ideal solution. In smartphones and tablets, we utilize progressive die-stamped magnesium alloy frames to provide sturdy structural support without adding excessive bulk. The multi-step nature of progressive die stamping allows us to form complex shapes, precise bends, and integrated features such as camera cutouts, speaker grilles, and connector slots in one continuous operation. In a recent flagship smartphone project, we employed progressive die-stamped aluminum mid-frames with integrated antenna slots. These parts not only enhanced the device’s structural rigidity but also optimized signal reception, eliminating the need for additional antenna components and reducing the overall thickness of the phone by 1.3mm. The ability to produce frames with consistent quality and tight tolerances ensures that our electronic devices can withstand the rigors of daily use while maintaining a sleek and modern design.
2. Progressive Die Stamping: Optimizing Thermal Management for High-Performance Devices
Overheating can severely degrade the performance and lifespan of electronic components, especially in high-performance devices like gaming laptops and servers. Progressive die stamping plays a vital role in our thermal management strategies. We often use this technique to manufacture precision heat sinks from materials like copper and aluminum. In a gaming laptop project, we developed progressive die-stamped copper heat sinks with densely packed, ultra-thin fins. The progressive die stamping process enabled us to achieve a fin thickness of 0.2mm with remarkable accuracy, maximizing the surface area for heat dissipation. As a result, the operating temperature of the laptop’s CPU and GPU was reduced by 28°C, ensuring consistent high performance during extended gaming sessions. Additionally, the ability to create custom heat sink designs with integrated mounting points and heat pipes through progressive die stamping allows us to tailor thermal solutions to the specific requirements of each electronic device.
3. Progressive Die Stamping: Enhancing Signal Integrity with EMI/RFI Shielding

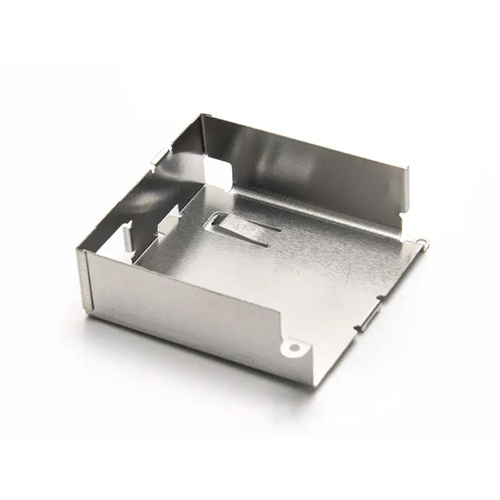

Electromagnetic interference (EMI) and radio-frequency interference (RFI) can disrupt the operation of sensitive electronic components, leading to signal degradation and system failures. Progressive die stamping provides effective solutions for creating EMI/RFI shielding components. We use this process to produce metal enclosures and shields from materials such as stainless steel and mu-metal. In a project for a high-end audio amplifier, we developed progressive die-stamped mu-metal shields with custom shapes to isolate the amplifier’s pre-amplification stage from external electromagnetic noise. The precision of the progressive die stamping process ensured that the shields fit snugly around the circuitry, providing excellent electromagnetic shielding and improving the audio quality by enhancing the signal-to-noise ratio. These shielding components, manufactured with high precision and consistency, are essential for maintaining the reliability and performance of our electronic products in various electromagnetic environments.
4. Progressive Die Stamping: Ensuring Reliable Electrical Connections
Reliable electrical connections are the lifeblood of electronic devices, and progressive die stamping excels in creating high-precision connectors and terminals. We use this process to produce metal contacts with precisely formed surfaces and tight tolerances, ensuring low electrical resistance and stable connections. In a project for wearable electronics, we developed progressive die-stamped gold-plated copper connectors with spring-loaded features. The progressive die stamping process ensured that each connector had consistent dimensions and excellent conductivity, providing secure and reliable connections for charging and data transfer, even in the challenging environment of constant movement and flexing. Additionally, the ability to integrate features such as strain relief and insulation directly into the stamped parts further enhances the durability and performance of our electrical connections, making them suitable for a wide range of electronic applications.
5. Progressive Die Stamping: Driving Innovation in Electronic Product Design
As a team committed to pushing the boundaries of electronic innovation, we leverage progressive die stamping to explore new design possibilities. The flexibility of progressive die stamping allows us to integrate multiple functions into a single component, reducing the number of parts and simplifying assembly. For example, in a project for a smartwatch, we designed progressive die-stamped titanium alloy bands that served as both a stylish accessory and a structural support, while also incorporating wireless charging coils and sensors. This integrated design not only enhanced the device’s functionality but also reduced its overall size and weight. Moreover, the rapid prototyping capabilities of progressive die stamping enable us to quickly test and refine new designs, accelerating our product development cycle and allowing us to bring innovative electronic products to market faster. By continuously exploring the potential of progressive die stamping, we aim to stay at the forefront of the electronics industry and deliver products that exceed customer expectations.
